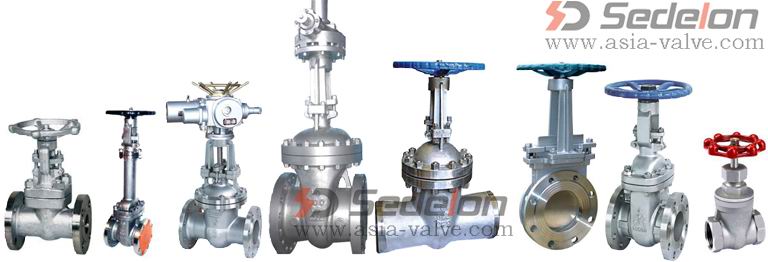

Stainless steel gate valves
Design & manufacture standard: API6D, API600, API603, ISO10434,API602 etc..
Face to face dimensions: ANSI/ASME B16.10.
Flange connection: ANSI/ASME B16.5 for NPS24,ASME B16.47A/MSS SP-44 for NPS>24.
Butt-welding end dimensions: ANSI/ASME B16.25.
Socket-welding dimensions: ANSI/ASME B16.11.
Pressure: 150Lb~2500lb
Nominal diameters: 1/2"~60"
Major materials:A351 CF8,A351 CF8M,A351 CF3,A351 CF3M,A351 CN7M,A182 F304,F316,F316L,F304L,F321,F50,F51,F44
ASTM A890 4A,A890 5A,A890 6A etc.
Driving styles: manual/electric/conical gear/pneumatic, etc.
Inspection & test standard: API6D, API598.
