Homepage>>>Products>>>Globe Valve>>>Forged Steel Cryogenic Globe Valve



Forged Steel Cryogenic Globe Valve,Cryogenic Globe Valve,LF2,LF3.LCB,LCC

Class 150~1500 Cryogenic Globe Valve

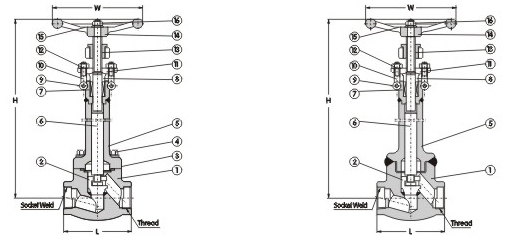

Standard Material Specifications
NO. Part Name AS to ASTM SS to ASTM
Type A350 LF2 Type A350 LF3 Type A182 F304 Type A182 F316(L)
1 Body A350 LF2 A350 LF3 A182 F304(L) A182 F316(L)
2 Disc A276 410 A276 304(L) A276 304(L) A276 316(L)
3 Bonnet A350 LF2 A350 LF3 A182 F304(L) A182 F316(L)
4 Gasket Corrugated SS + graphite SS + PTFE
5 Bold Nut A193 B7 A193 B7 A193 B8 A193 B8M
6 Stem A182 F6 A182 F6 A182 F304(L) A182 F316(L)
7 Stem Packing Flexible graphite PTFE
8 Gland A276 420 A182 F304
9 Pin A276 420 A182 F304
10 Gland Eyebolt A193 B7 A193 B16 A193 B8 A193 B8M
11 Gland Flange A216 WCB A351 CF8
12 Gland Nut A194 2H A194 4 A194 8 A194 8M
13 Yoke Nut A276 410
14 Hand wheel A197
15 Nameplate SS
16 H.W. Nut A194 2H A194 4 A194 8 A194 8M
Suitable Temperature -46℃ -101℃ -254℃
Note: Other materials are available upon request.

Dimensions(mm) And Weights(kg)
NPS (in) 3/8 1/2 3/4 1 1-1/4 1-1/2 2
L 79 92 111 120 120 172 200
H(OPEN) 333 337 370 480 410 474 546
W 100 100 125 160 160 180 200
Weights Bolted 5.2 7.2 10.9 13.5 15.2 19.8 29.0
Welded 4.8 6.5 9.5 11.5 13.1 17.5 26.8
