Homepage>>>Products>>>Gate valve>>>pressure sealed gate valves

 pressure-sealed-gate-valves-High Pressure Gate Valves,Pressure Sealed Gate Valves,Power Station Valve ,High Temperature Valves

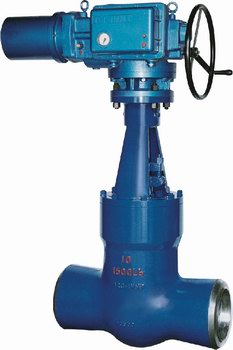

High Pressure Seal Gate Valves

The design and manufacture of high-pressure valve is in accordance with ANSI B16.34, the High Pressure Seal Gate Valves has a beautiful shape, compact structure, reliable sealing. Valve for the Class 900lb-Class4500lb various tubes on the road.
High-pressure self-sealing valve has the following advantages:
1) Self-sealing high-pressure valve allows the structure of the valve body, valve cover tight junction structure, the provincial Public Works save cost, safe and reliable.
2) valve pressure in the valve cover seal, the use of the modular structure to achieve linear sealed its seals at the same time the use of austenitic stainless steel, anti-cavitation, extended life, thereby ensuring that the valve seal under high-pressure differential did not leak.
3) valve in the 2500 pounds and above level, the body cavity sealing contact with the surfacing of stainless steel lining Department to avoid the valve sealing region under high-pressure differential erosion by soft drinks appear Ma leakage point, thus to ensure a safety valve, long-term operation.


Class 900lb~2500lb
Size: NPS 2" ~ 30"
Basic Design: ANSI B16. 34, API 600
Face to face standard: ANSI B16.10, API 6D
Ends Connection: ANSI B16.5(RF,RTJ), B.W. Ends to ANSI B16.25
Material: ASTM A216 WCB,ASTM A352 LCB, ASTM A217 WC6, WC9, C12, C5, CF8, CF3, CF3M, CF8M etc.

Standards compliance
Design and Manufacture: AMSI B16.34,API600 API6D,BS1414
Face to face(end to end):ANSI B16.10,API6D
Flanged connection : ANSI B16.5
Butt welded end: ANSI B16.25
Test and inspection:API598,API6D

Standard Material Specifications
pressure-seal-gate-valve

NO.

Part Name

WCB

WC6

WC9

C5

CF8

CF8M

1

Body

A216 WCB

A217 WC6

A217 WC9

A217 C5

A351 CF8

A351 CF8M

2

Seat Ring

A182 F6a

A182 F22

A182 F22

A182 F5

A182 F304

A182 F316

3

Disc

A216 WCB

A217 WC6

A217 WC9

A217 C5

A351 CF8

A351 CF8M

4

Stem

A182 F6a

SAEHNV3

A182 F304

A182 F316

5

Stuffing Box

A216 WCB

A217 WC6

A217 WC9

A217 C5

A351 CF8

A351 CF8M

6

Seal Ring

AISI 316L

Flexible Graphite + 316

7

Split Ring

Steel

F6

F6

F6

F304

F316

8

Back Ring

Steel

Steel

Steel

Steel

S.S.

S.S.

9

Bolt

A193 B7

A193 B7

A193 B7

A193 B7

A193 B8

A193 B8

10

Nut

A194 2H

A194 2H

A194 2H

A194 2H

A194 Gr. 8

A194 Gr. 8

11

Yoke

A216 WCB

A217 WC6

A217 WC9

A217 C5

A351 CF8

A351 CF8M

12

Bolt

A193 B7

A193 B7

A193 B7

A193 B7

A193 B8

A193 B8

13

Nut

A194 2H

A194 2H

A194 2H

A194 2H

A194 Gr. 8

A194 Gr. 8

14

Packing Plate

AISI 410

AISI 410

AISI 410

AISI 410

AISI 304

AISI 316

15

Packing

Flexible Graphite (Braided and Ring) or PTFE

16

Split Pin

Steel

Steel

Steel

Steel

Steel

Steel

17

Eyebolt

A193 B7

A193 B7

A193 B7

A193 B7

A193 B8

A193 B8

18

Gland

A182 F6

A182 F6

A182 F6

A182 F6

A182 F304

A182 F316

19

Gland Flange

A105

A105

A105

A105

A182 F304

A182 F316

20

Nut

A194 2H

A194 2H

A194 2H

A194 2H

A194 Gr. 8

A194 Gr. 8

21

Stud

A193 B7

A193 B7

A193 B7

A193 B7

A193 B7

A193 B7

22

Stem Nut

Ni-resist A439-D2

23

Gear Box

Pu, rchased

24

Protector

Steel

25

Nameplate

AISI 304

26

Rivet

AISI 304

Other materials are available on request

Test Pressure to API 598

Class

Shell Test (Hydrostatic)

Seat Test (Hydrostatic)

Seat Test (Air)

900lb

3350psi

2442psi

80psi

1500lb

5626psi

4078psi

80psi

2500lb

9275psi

6787psi

80psi


Dimensions(mm) and Weights(Kg)

NPS

Class

2

2-1/2

3

4

6

8

10

12

14

16

18

20

22

DN

50

65

80

100

150

200

250

300

350

400

450

500

550

L(RF)

900LB

368

419

381

457

610

737

838

965

1029

1130







1500LB

368

419

470

546

705

832

991

1130

1257

1384







2500LB

451

508

578

673

917

1022

1270













L1(BW)

900LB

216

254

305

355

508

660

787

914

991

1092







1500LB

216

254

305

406

559

711

864

991

1067

1194

1346

1473

1600

2500LB

279

330

368

457

610

762

914

1041

1118

1245

1397





L2(RTJ)

900LB

371

422

384

460

613

740

841

968

1038

1140







1500LB

371

422

473

549

711

841

1000

1146

1276

1407







2500LB

454

514

584

683

927

1038

1292













H(Open)

900LB

554

637

680

796

1084

1372

1494

1550

1960

2210







1500LB

554

637

767

875

1094

1372

1655

1843

2150

2260

2460

2721

2940

2500LB

610

654

753

850

1254

1374

1685

1894

2226

2382

2585





W

900LB

300

350

350

400

560

460*

610*

610*

610*

760*







1500LB

300

450

450

560

305*

460*

610*

610*

760*

760*







2500LB

500

500

600

600

460*

460*

610*













Weight

RF

900LB

50

84

92

154

341

622

950

1295

1720

2380







1500LB

60

91

128

182

394

795

1370

2120

2800

3870







2500LB

121

175

195

229

720

1295

2250













BW

900LB

39

64

82

120

266

524

760

1090

1450

2018







1500LB

46

71

85

130

292

587

974

1615

2010

2815

3315

4150

5219

2500LB

88

135

144

158

500

892

1550

1978

2580

3780

5988





*Manual gear operator is recommended.
