Homepage>>>Products>>>Gate valve>>>Bellows-Gate-Valve

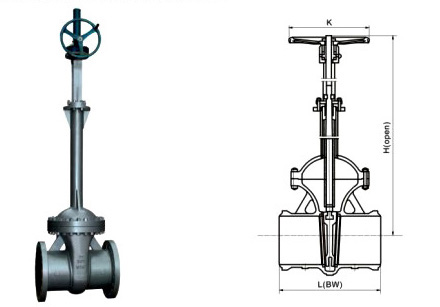

CLASS 150~600Lb BELLOWS GATE VALVE

OS&Y,Rising stem,Bolted lengthen bonnet,welded seat ring,full bore stainless trim

ASTM A216 WCB

A357 LCB LC1 CL2 LC4

A351 CF8 CF8M CF3 CF3M

A217 WC1 WC6 WC9 C5 C12

NO.
Part name
Materials
21
Bearing
GCr
20
Stem Nut
A439-D2
19
Grease nipple
B62
18
Hand wheel nut
A193 B7
17
Yoke Nut
A193 B7
16
Hand wheel
Ducile iron
21
inner-hexagong-bolt
A193 B7
20
Oriented block
A105/304
19
Protector
A216 WCB
18
Gear equiment
Ducile iron
NO.
Part name
Materials
A216 WCB
A352 LCB
A217 WC9
A217 C5
A351 CF8M
A351 CF3M
15
Yoke
A216 WCB
A352 LCB
A216 WCB
A216 WCB
A351 CF8
14
Gland flange
A216 WCB
A351 CF8
13
Eye nut
A193 B7
A193 L7
A193 B16
A193 B8M
12
Eye bolt
A194 2H
A194 4
A194 7
A194 8M
11
Gland
A276 410
A276 410
A276 304
A276 316
10
Gland packing
Flexible graphite+304
PTFE
9
Bonnet
A216 WCB
A352 LCB
A217 WC9
A217 C5
A351 CF8M
A351 CF3M
8
Bonnet bolt
A193 B7
A193 L7
A193 B16
A193 B16
A193 B8M
7
Bonnet nut
A194 2H
A194 4
A194 7
A194 7
A194 8M
6
Gasket
SS304+graphite
SS316+PTFE
5
Bellows
SS304
SS304
SS304
SS316
SS316L
4
Stem
A182 F6
A182 F304
A182 F304
A182 F316
A182 F316L
3
Wedge
A216 WCB
A352 LCB
A217 WC9
A217 C5
A351 CF8M
A351 CF3M
2
Seat ring
A105
A182 F304
A182 F316
A182 F316L
1
Body
A216 WCB
A352 LCB
A217 WC9
A217 C5
A351 CF8M
A351 CF3M

CLASS 150~600Lb BELLOWS GATE VALVE

Class
Dimensions
150LB
Size
inch
2
2-1/2
3
4
6
8
10
12
14
16
18
20
24
26
28
30
32
34
36
L-RF
mm
178
191
203
229
267
292
330
356
381
406
432
457
508
559
610
610
710
762
71
L1-BW
mm
216
241
283
305
403
419
457
502
572
610
660
711
813
864
914
914
965
1016
1016
L2-RTJ
mm
191
203
216
241
279
305
343
368
394
419
445
470
521
559
610
610
710
762
711
H
mm
520
620
670
785
1095
1415
1730
2065
2466
2900
3110
3510
4200
4500
4800
5300
5600
6100
7200
K
mm
200
200
250
600
350
350
400
450
500
500
600
750
750
915
915
915
1000
1000
1000
Wt
RF
kg
215
34
36
60
102
154
264
372
540
660
840
972
1356
2015
2675
3330
3430
3660
4400
BW
kg
18
26
31
48
92
148
240
348
520
610
680
1056
1330
2100
2640
3180
3540
3900
4220
RTJ
kg
24
35
45
67
100
165
252
370
540
678
880
1120
1350
2040
2600
3360
3480
3680
4500
300LB
Size
inch
2
2-1/2
3
4
6
8
10
12
14
16
18
20
24
26
28
30
32
34
36
L-RF
mm
216
241
283
305
403
419
457
502
762
838
914
991
1143
1245
1346
1397
1524
1626
1727
L1-BW
mm
L2-RTJ
mm
232
257
298
321
419
435
473
518
778
854
930
1010
1165
1270
1372
1422
1553
1654
1756
H
mm
624
745
804
942
1314
1698
2076
2478
2960
3480
3732
4210
5040
5400
5700
6360
6720
7320
8600
K
mm
200
200
250

300

350
350
400
450
500
500
600
750
750
915
915
915
1000
1000
1000
Wt
RF
kg
29
53
57
87
174
271
420
695
860
1260
1480
1980
2780
3430
3920
5080
5480
5820
6300
RTJ
kg
BW
kg
24
42
45
65
132
210
342
600
738
1128
1300
1800
2520
3090
3960
4800
5220
5410
5825
600LB
Size
inch
2
2-1/2
3
4
6
8~nt
10
12
14
16
18
20
24
26
28
30
32
34
36
L-RF
mm
292
330
356
432
559
660
787
838
889
991
1092
1194
1397
1448
1549
1651
1778
1930
2083
L1-BW
mm
L2-RTJ
mm
295
333
359
435
562
664
791
841
892
994
1095
1200
1407
1461
1562
1664
1794
1946
2099
H
mm
748
890
965
1130
1575
2040
2491
2800
3552
4176
4460
5051
6050
6480
6840
7600
8060
8780
10320
K
mm
200
250
300
350
450
500
600
750
850
850
960
960
1000
1000
1000
1250
1500
1650
1800
Wt
RF
kg
42
66
86
152
438
533
840
1130
1570
1932
2485
2890
4580
5260
5890
6300
8200
8900
10560
RTJ
kg
BW
kg
38
56
77
124
261
445
685
990
1214
1510
2130
2410
3840
4700
5140
5850
6740
7400
940
