Homepage>>>Products>>>Ball valve>>>Full Welded Ball Valve

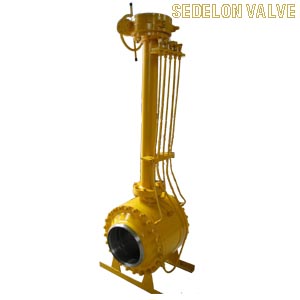

Full Welded Ball Valve

full welded ball valvefull welded ball valveswelded ball valve
Design and Manufacture:API 6D.ASME B1 6,34

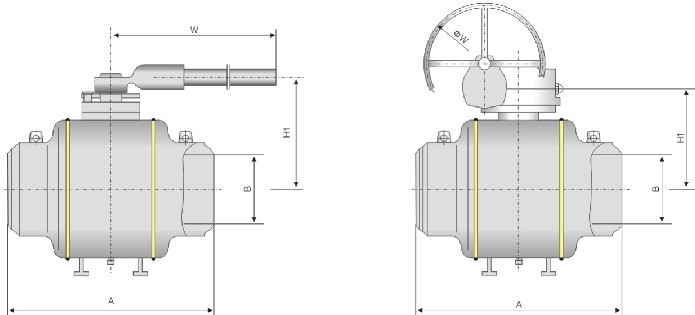

Face Dimension:ASME B16.10.API6D
Welding Ends Dimension:ASME B16.25
Pressure—temperature Ratings: ASME B1 6.34
Inspection and Test:API 598 API 6D
Type 0f Operation:Manual,Gear,Electric,Pneumatic,
Size:NPS2"-28” Pressure:Classl50Lb~1500Lb
Anti—Static Design Fire Safe Design as per APl607/6FA

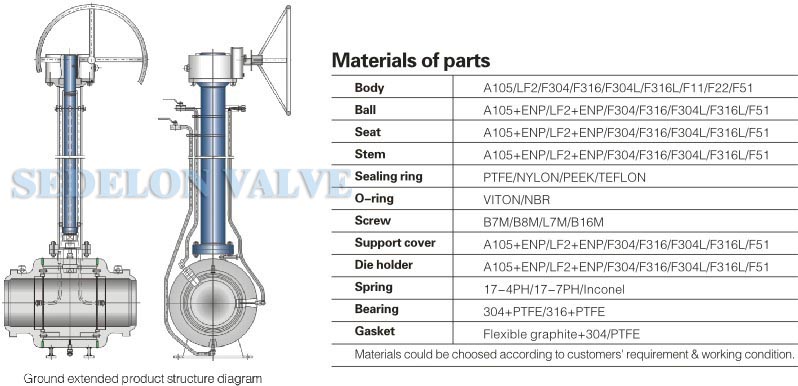

Materials:WCB,LCB,WC6,WC9,C12,C5,CF8,CF3,CF3M,CF8M,A105,LF2,F11,F22,F5,F304,F316,F304L,F316L


welded ball valve
full welded ball valve
welded ball valve

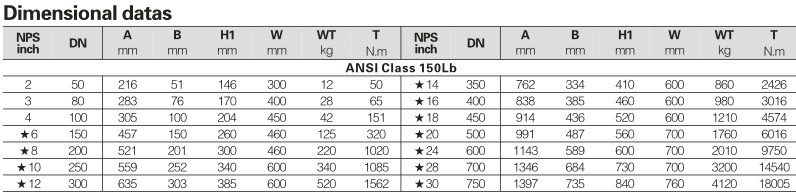

Full welded ball valve 150lb
welded ball valve

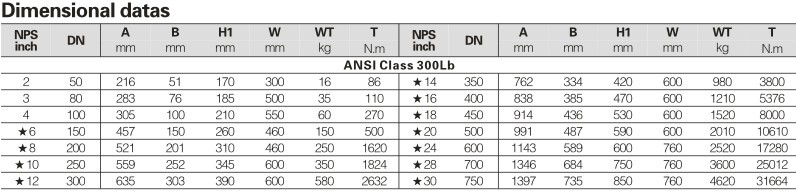

Full welded ball valve 300lb
full welded ball valve

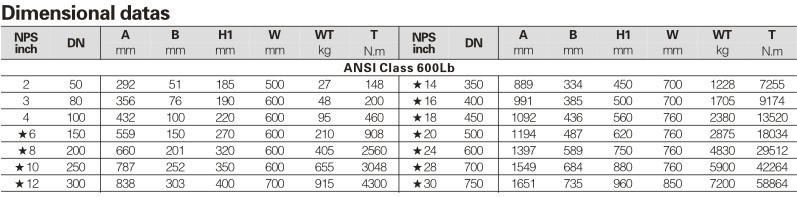

Full welded ball valve 600lb
full welded ball valve

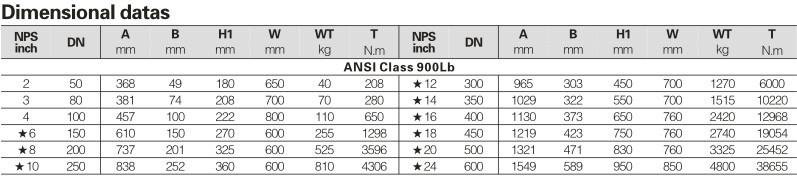

Full welded ball valve 900lb
welded ball valve

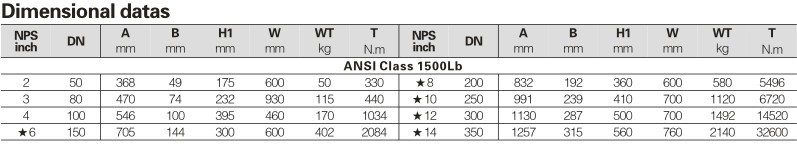

Full welded ball valve 1500lb
full welded ball valve
